FCS Booms

The flexibility and convenience you need in the OR, ICU and beyond.

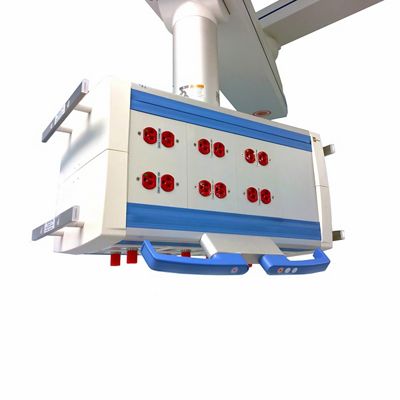

Streamlining your equipment setup means more time to care for your patient. The ceiling-mounted FCS Boom’s modular design lets you interchange all low-voltage, electrical and medical gas modules at any time, even after installation. The unique Quick Connect mechanism allows tool-free attachment of a wide range of components and accessories, and the boom’s small footprint and long reach arms let you move it to any position or park it out of the way.


  • Custom-shaped, overlapping silicone gaskets help keep foreign matter out of the recessed Mounting Power Communication (MPC) rail system.
  • The patented MPC rail supplies select components with low-voltage power.

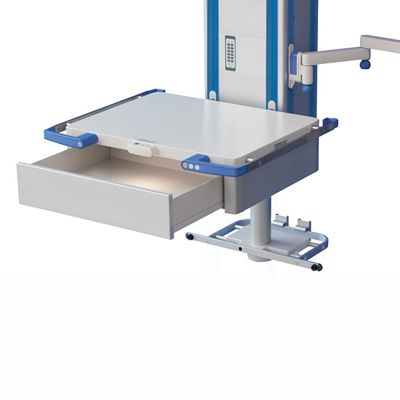

  • Spring-loaded, flush drawers with no exterior handles are easy to use and clean.

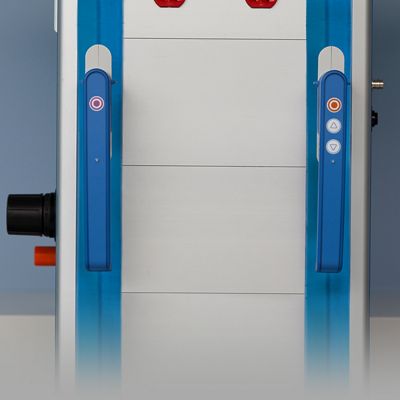

  • Operating controls on the support head and a color-coded brake system let you intuitively position the FCS Boom.
  • Easily attach shelves and drawers of various widths and depths.
  • A dock-on trolley equipment carrier is also available.


Modular design simplifies arrangement and selection of modules.

Easy to Clean

Custom silicone gaskets keep foreign matter out of the rail system.


Patented MPC rail supplies select components with low-voltage power.


Quick Connect gives tool-free attachment of a variety of components.

Technical Specifications

Dig deeper into product attributes to see how we can fit your requirements.

  FCS 700 FCS 500  FCS 300
Support Dual Arm Reach Up to 102" (2,600 mm) Up to 100" (2,540 mm) Up to 105" (2,680 mm)
Brake System Options Electro-pneumatic, Electric or Friction Brake Electro-pneumatic or Friction Brake Friction Brake
Ceiling Attachment Suspended ceiling clearance up to 59" (1,500 mm) Suspended ceiling clearance up to 59" (1,500 mm) Standard Light Mounting System Required, Mounting Plate at 10" (254 mm)
Vertically Articulating Adjustment (optional)
     Arm Reach 39.4“ (1,000 mm) 39.4“ (1,000 mm) or 48” (1240 mm) 38” (980 mm)
     Vertical Range 27.6“ (700 mm) 27.6“ (700 mm) 33“ (840 mm)
     Lift Speed 1.2“/s (30 mm/s) 1.2“/s (30 mm/s) or Manual Manual
Max. Load Up to 750 lbs (340 kg) Up to 396 lbs (180 kg) Up to 33 lbs (15 kg)
Swivel Range 330° on all joints, stops configurable every 12° 330° on all joints, stops configurable every 12° 325° on all joints
Support Head Dimensions   Monitor Brackets can accommodate up to 60” monitors
   L x W 12" x 12"  (310 mm x 310 mm) 12" x 12"  (310 mm x 310 mm)
   Height 20” – 59” (500 mm – 1500 mm) 10” (250 mm)
Data Module Availability Yes - Yes
Gas Module Availability Yes - -
Electric Power Module Availability Yes - Yes
Modular Service Flexibility Yes - Yes
Shelf Availability Yes - -
Drawers Availability Yes - -
